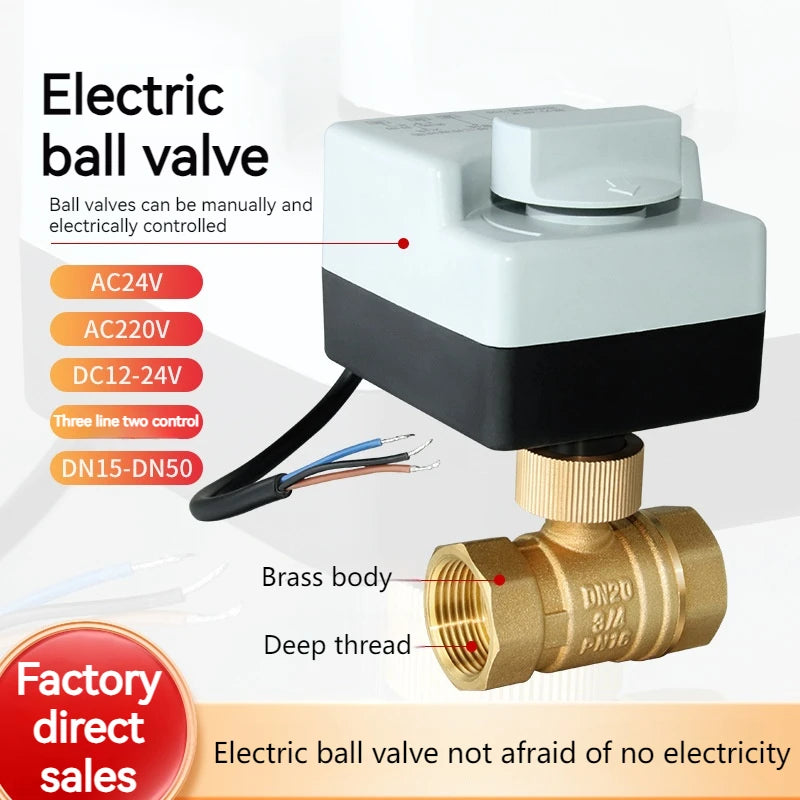

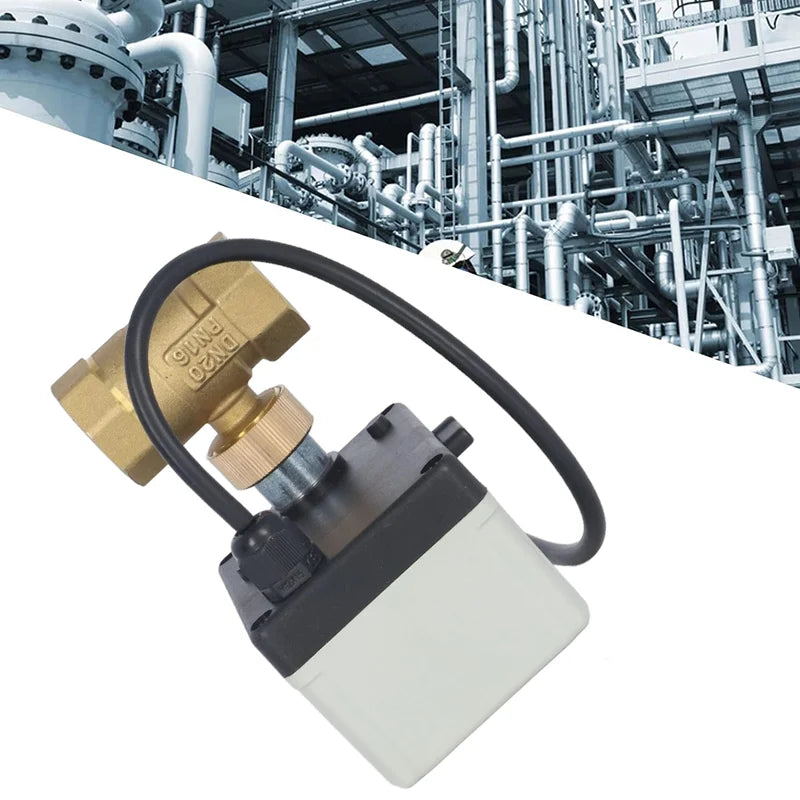

Brass Motorized Ball Valve 3-Wire Two Control Electric Actuator AC220V 3 Ways /2 Way DN15 DN20 DN25 DN32 DN40 with Manual Switch
SPECIFICATIONSActuator Mode: With Manual And InstructionBrand Name: NoEnName_NullChoice: yesHign-concerned Chemical: NoneMaterial: BrassMedia: WaterNC or NO: Normally ClosedOrigin:...
- $105.00
$0.00- $105.00
- Unit price
- per
Please hurry! Only left in stock
Limited-Time Offers, End in:
151D
8H
23M
0S
Subtotal:
$105.00
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $99
Free Returns
Learn More.
Description
xSPECIFICATIONS
Actuator Mode: With Manual And Instruction
Brand Name: NoEnName_Null
Choice: yes
Hign-concerned Chemical: None
Material: Brass
Media: Water
NC or NO: Normally Closed
Origin: Mainland China

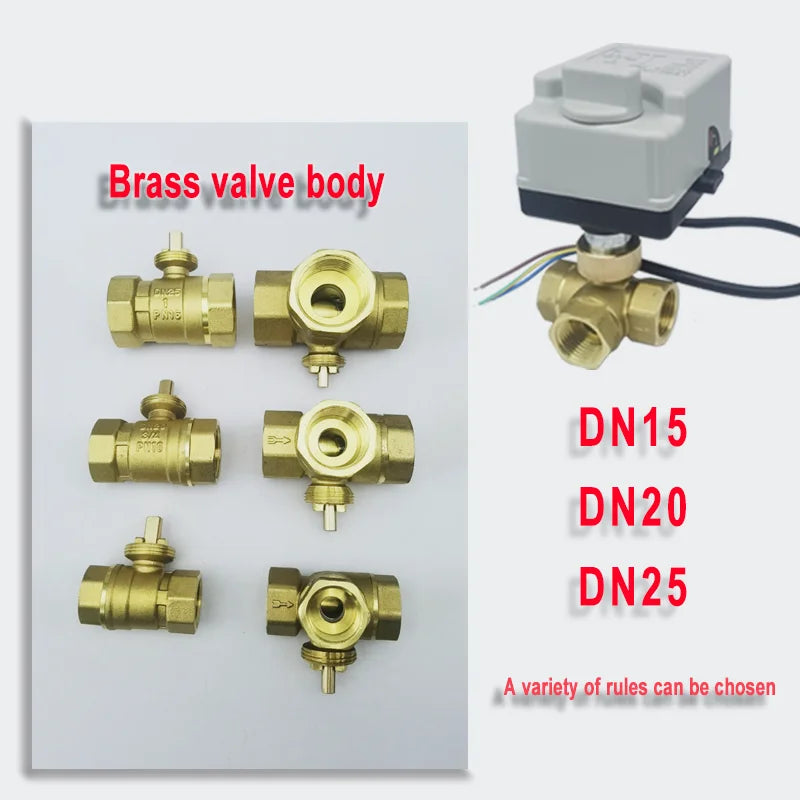

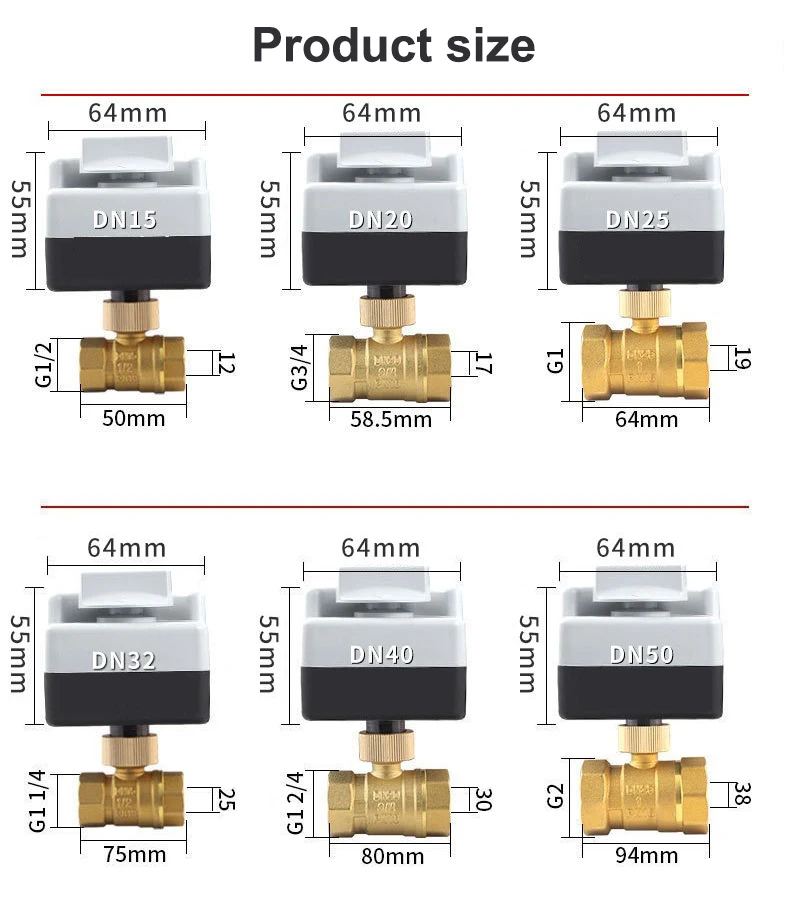

Port Size: DN15 DN20 DN25 DN32 DN40 DN50
Power Source: AC
Pressure: High Pressure
Structure: Ball
Temperature of Media: Medium Temperature
• High Pressure Resistance :This brass motorized ball valve is designed to withstand high pressure, ensuring reliable performance and durability in various applications.
• Versatile Control Options :Equipped with manual and instructional actuator modes, this valve offers flexibility and control over the flow of media.
• Wide Temperature Range :With a medium temperature range, this valve is suitable for use in environments with a wide range of temperatures, making it versatile and adaptable.
• Three-Wire Electric Actuator :The three-wire electric actuator AC220V provides efficient and effective operation, enhancing the overall performance of the valve.
• Three-Way/Two-Way Functionality :The three-way/two-way functionality of this valve allows for flexible control over the flow of media, making it a valuable addition to any system.
• Manual Switch Feature :The manual switch feature of this valve provides an additional layer of control, allowing for easy and quick adjustments to the flow of media.
Product Introduction:
The maximum working pressure of the ball valve is 1.6MPa and the maximum working temperature is 100 ℃, which is very suitable for high pressure and high temperature projects.

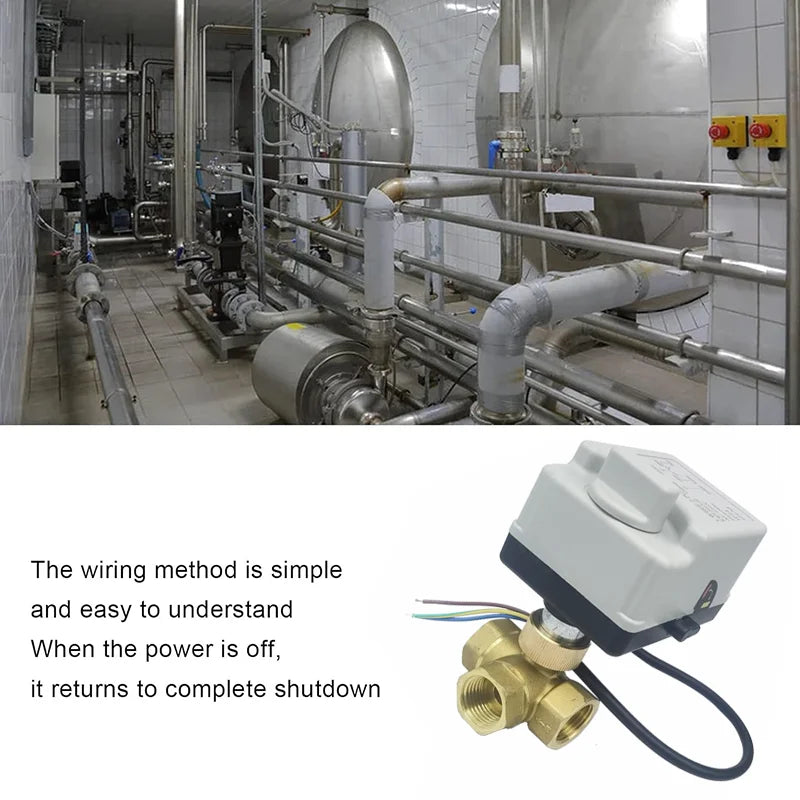

Simple connection: The ball valve connection is simple, fast and convenient, and it can be restored to the completely closed state after the power failure.
Suitable media: Our ball valves can be used in cold water, hot water and 50% concentration solutions.

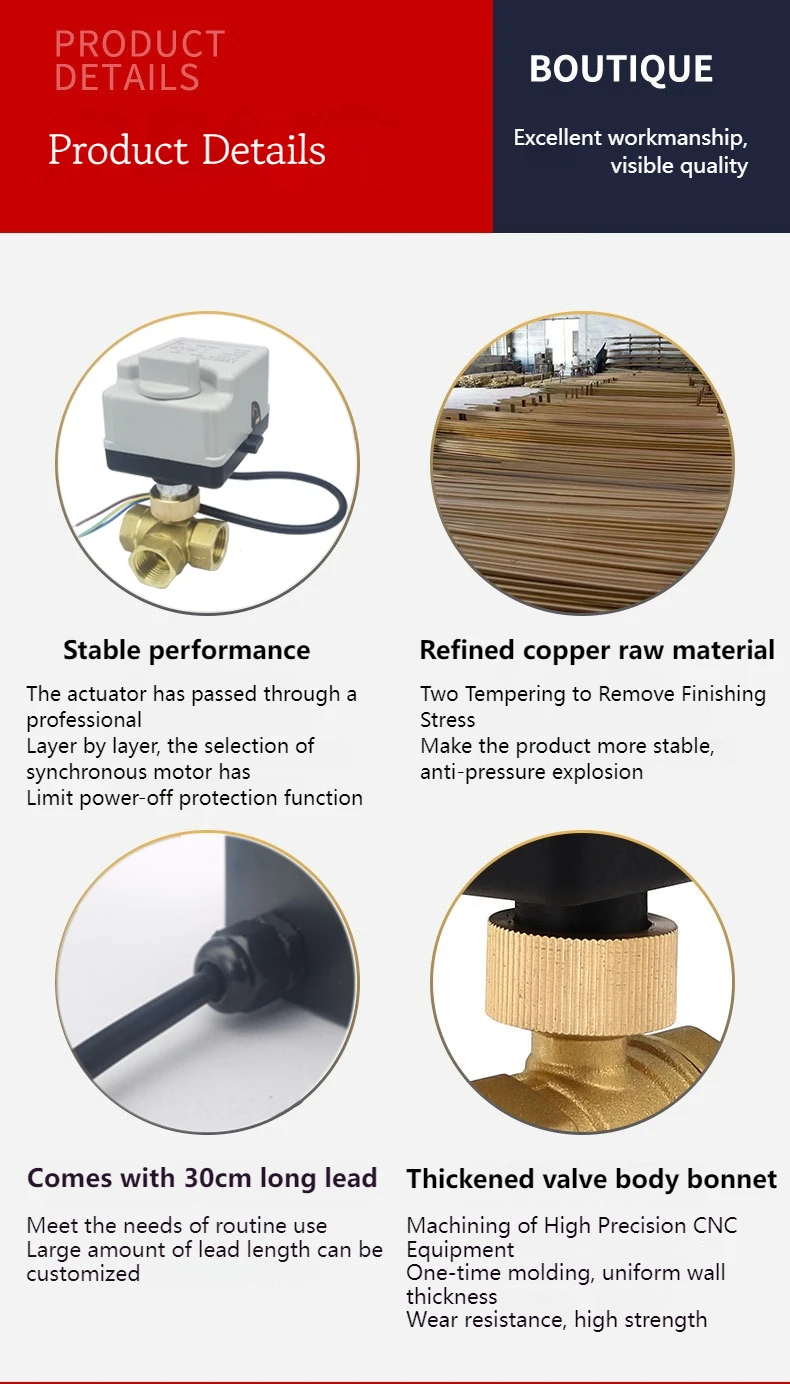

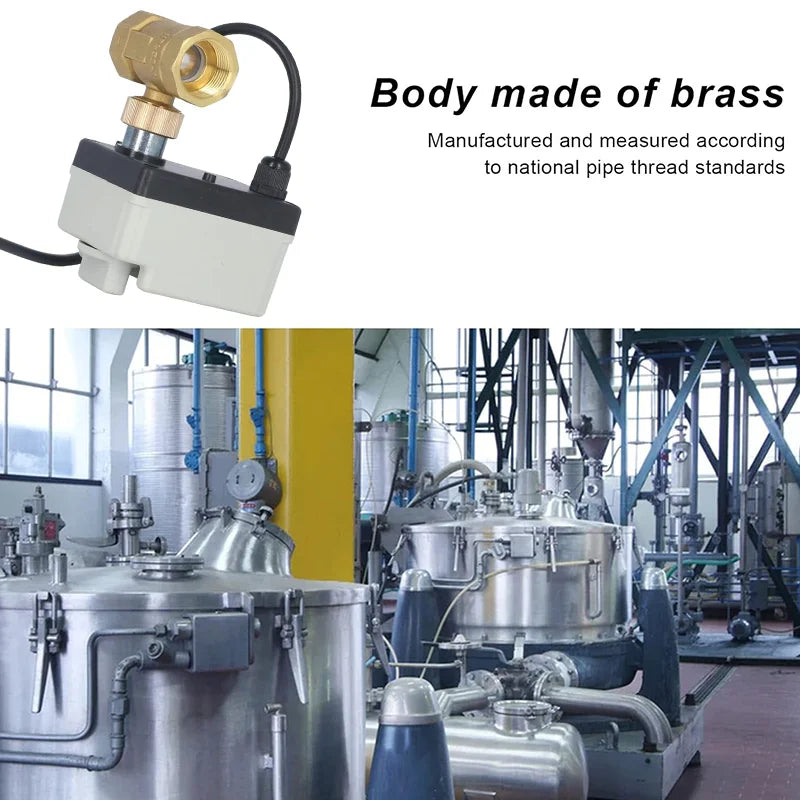

Brass body: The valve body is made of brass and is not easily damaged.
High protection level: The protection level of the ball valve is IP54, dustproof and waterproof, which can be used with confidence.
Feature:

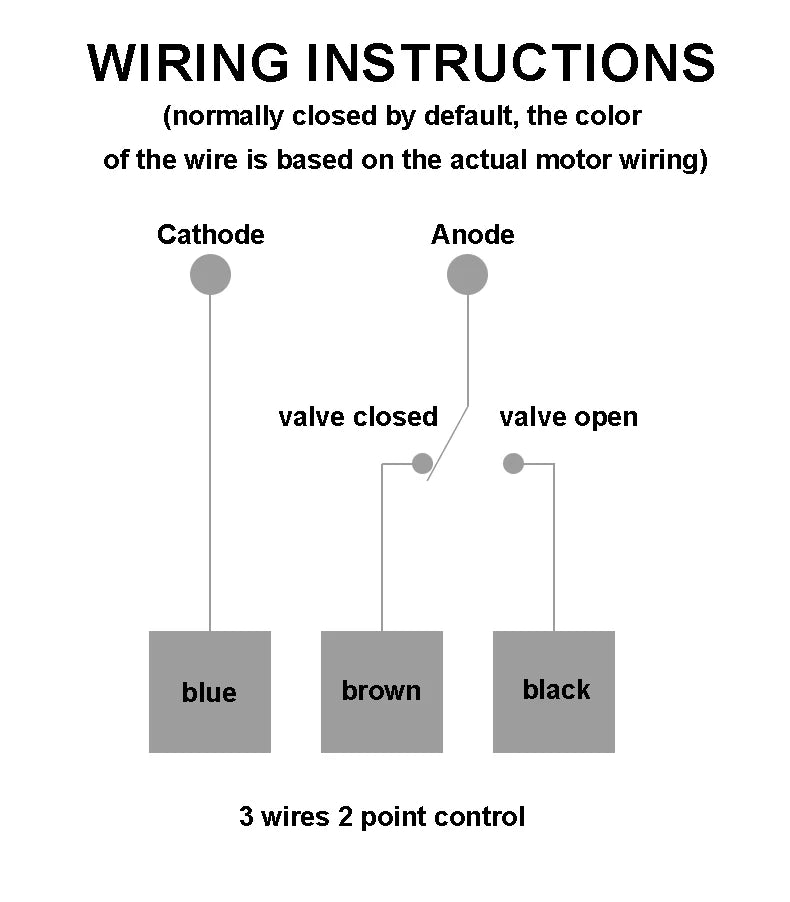

3-Wire Two Control
Way:2Ways /3Ways (3Ways is T type)
Open/Close Time: 25 seconds
Maxmum Working Pressure: 1.6 MPa / 232psi;
Medium: Water, Air, Oil;
Voltage: AC220V 50/60 Hz Available;
Power: Max is 6W

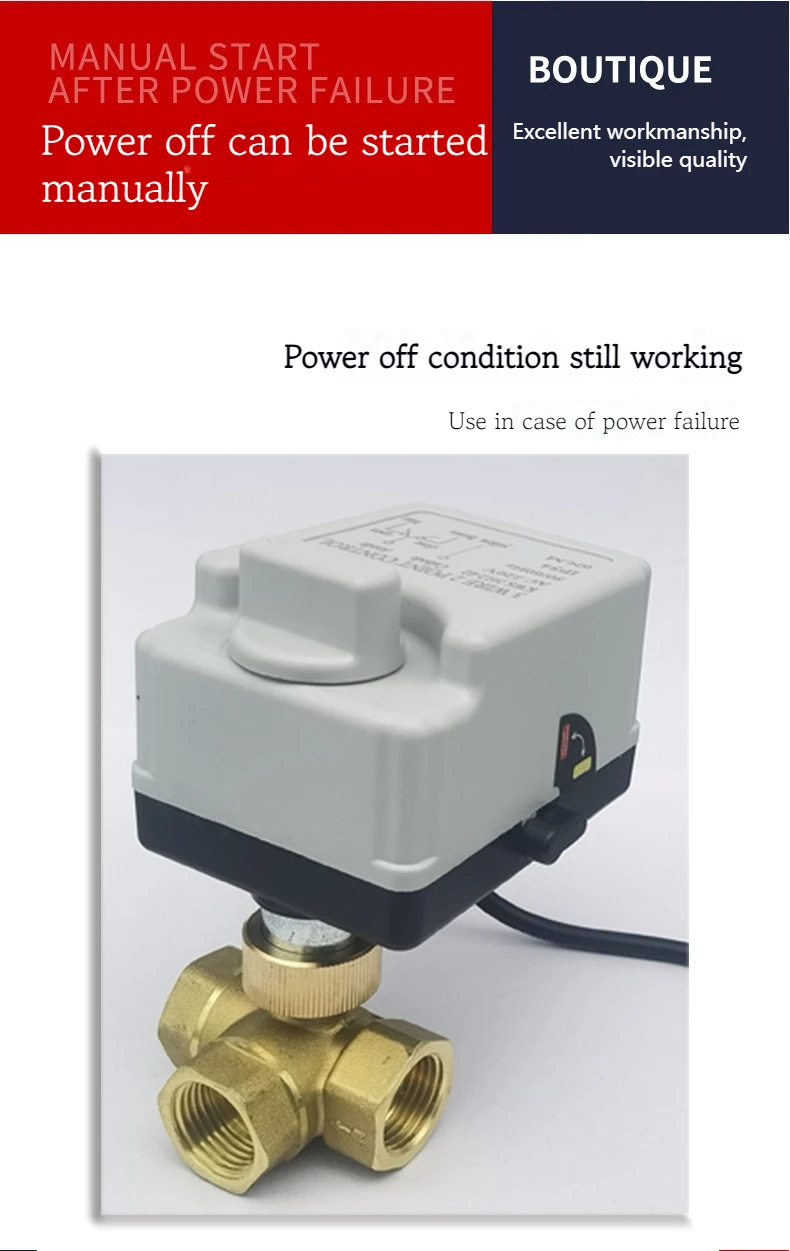

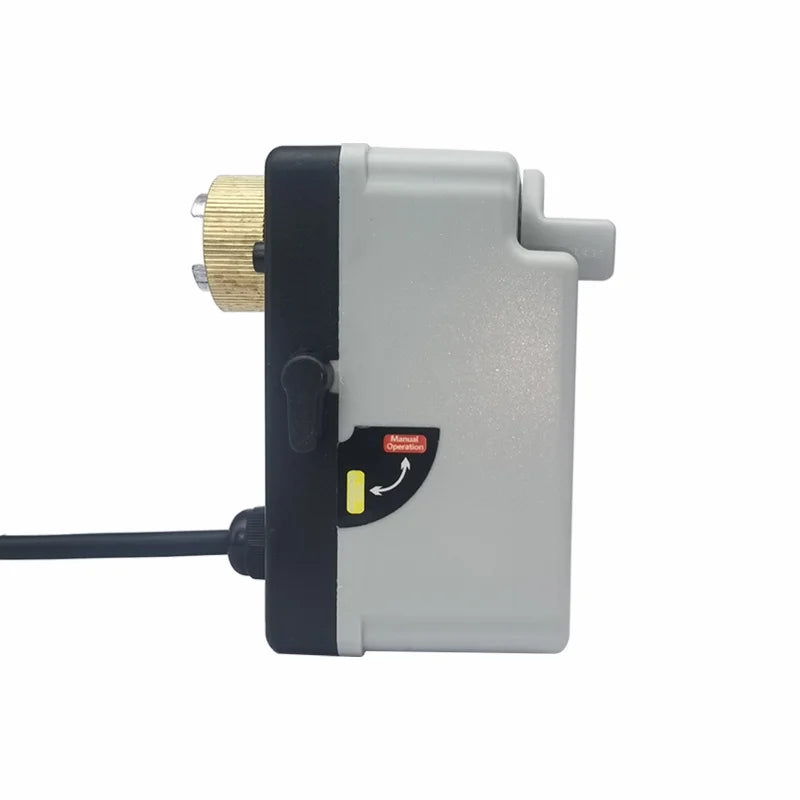

Operation: Motor and hand(with manual switch function)
Life Time: 100000 times;
Material: Brass,ABS plastic
Seal material: EPDM & PTFE;
Enviroment Temperature: 0 ° ~ 65 ° in Celsius;
Medium Temperature: 0 ° ~ 95 ° in Celsiu
Protect Class: IP 54
Package Includes:
1 x electric ball valve
Warm tips:
Manual valve opening or valve closing is prohibited during power-on!

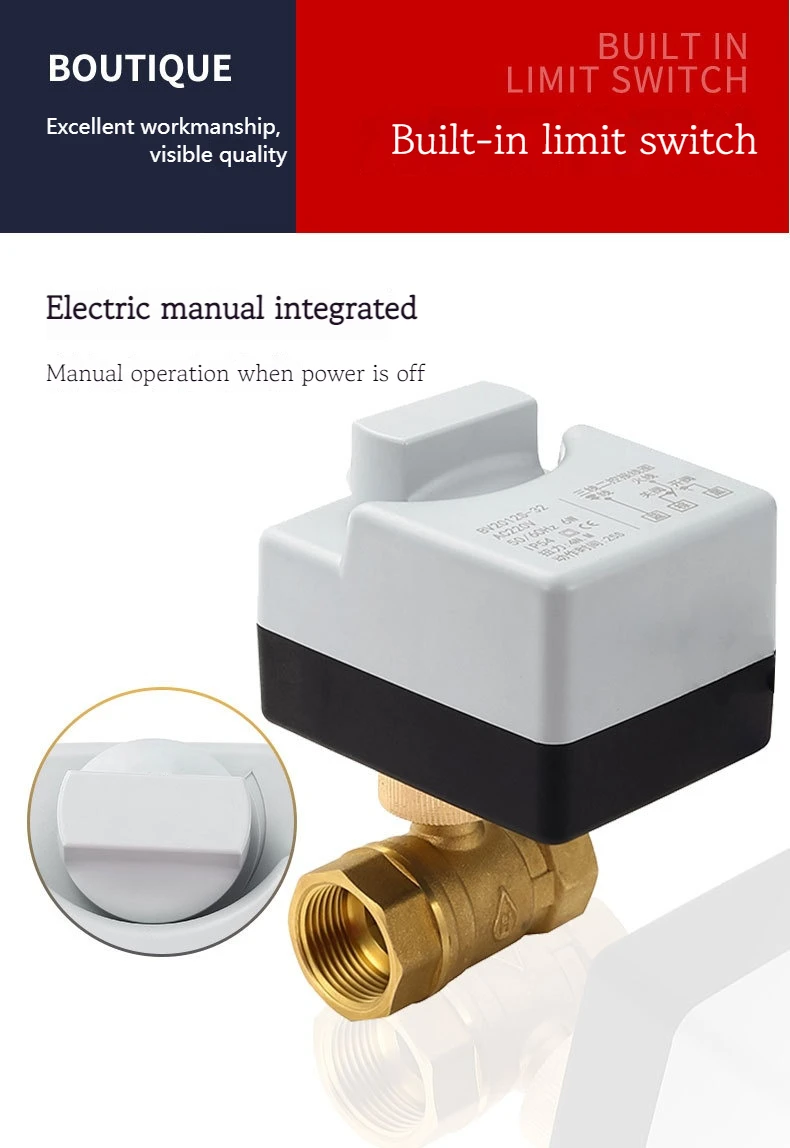

Actuator switch speed 25 seconds, built-in limit switch, switch in place Internal automatic power-off, no power consumption.
