Brand Name: NoEnName_Null
Choice: yes
Display Mode: good
Hign-concerned Chemical: None
Origin: Mainland China
Resolution: 240x240

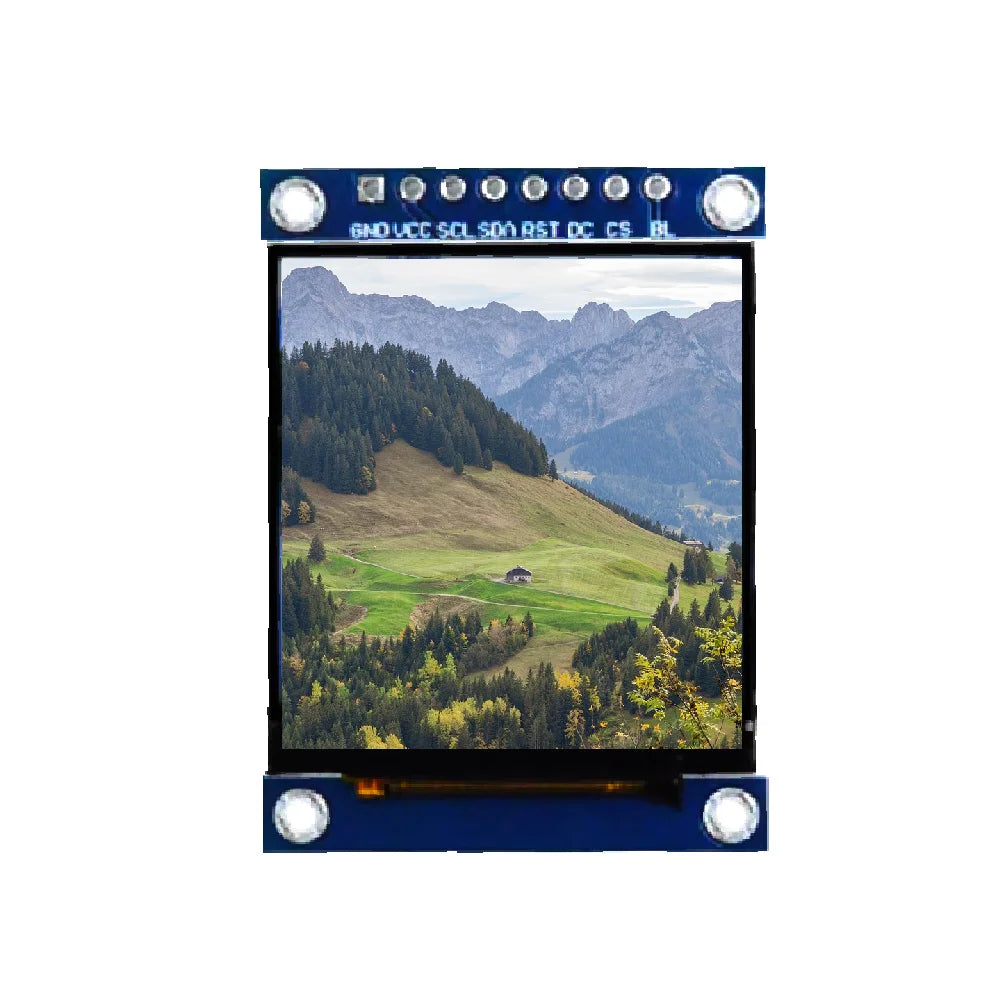

240x240 pixel 1.54 inch IPS tft lcd display with ST7789 controller and breakout board,superior display quality,super wide viewing angle and easily controlled by MCU such as 8051, PIC, AVR, ARDUINO,ARM and Raspberry PI. It can be used in any embedded systems,industrial device,security and hand-held equipment which requires display in high quality and colorful image. It's 4-wire serial spi interface with pin header connection.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi. It can be used in any embedded systems,industrial device,security,medical and hand-held device.
Specification
Display Format240x240 Dots
Interface4-Wire Serial SPI
IC or EquivalentST7789VW
AppearanceRGB
Diagonal Size1.54"
ConnectionMetal Pin

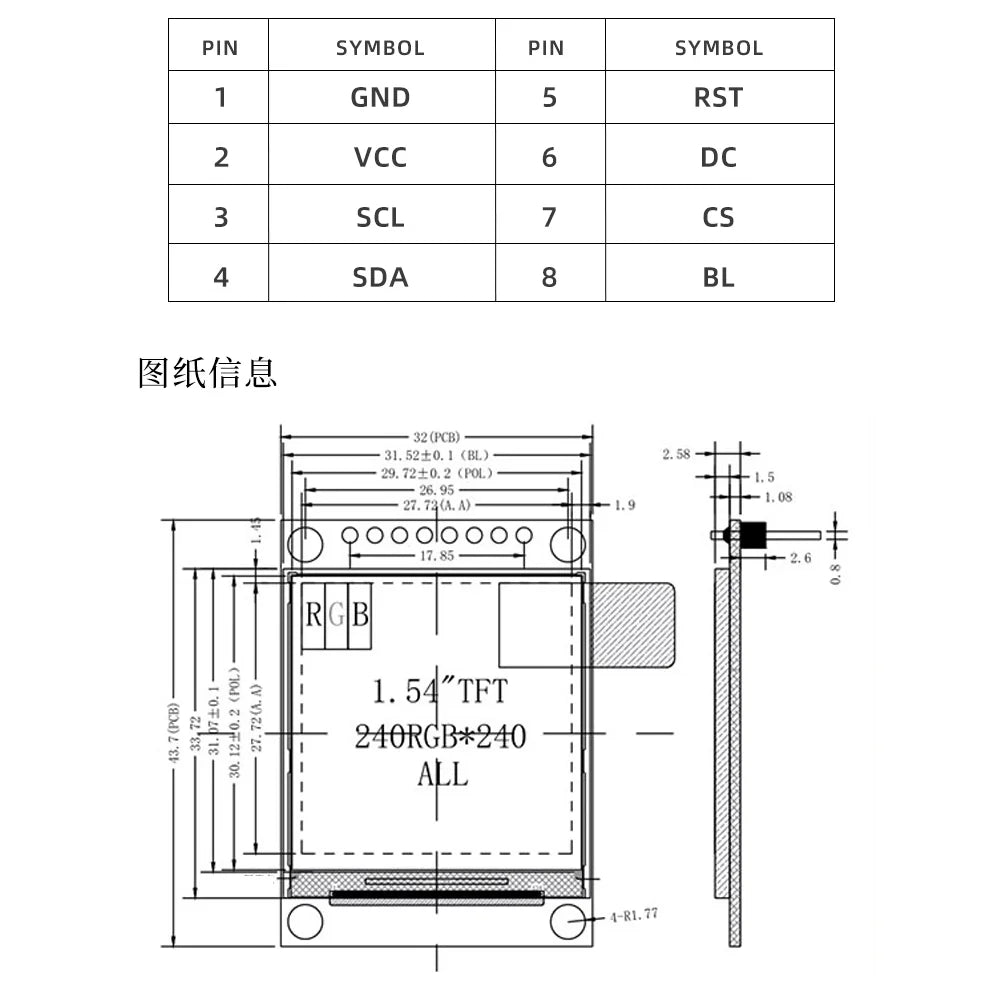

Outline Dimension32.00(W)x43.72(H)
Visual Area28.72x28.72mm
Active Area27.72(W)x27.72(H)mm
Character SizeNo
Dot (Pixel) SizeNo
Dot (Pixel) Pitch0.115x0.115mm
IC PackageCOG
Display TypeTFT-LCD Color
Touch Panel OptionalNo
Sunlight ReadableNo
Response Time(Typ)20ms
Contrast Ratio(Typ)500:1
Colors4K/65K/262K
Viewing DirectionNo
Viewing Angle RangeLeft:80.0, Right:80.0 , Up:80.0, Down:80.0degree
Brightness(Typ)400cd/m2
Backlight ColorWhite Color
Backlight Current (Typ)No
Power Supply(Typ)2.8V
Supply Current for LCM(Max)No
Operating Temperature-20℃~70℃
Storage Temperature-30℃~80℃
